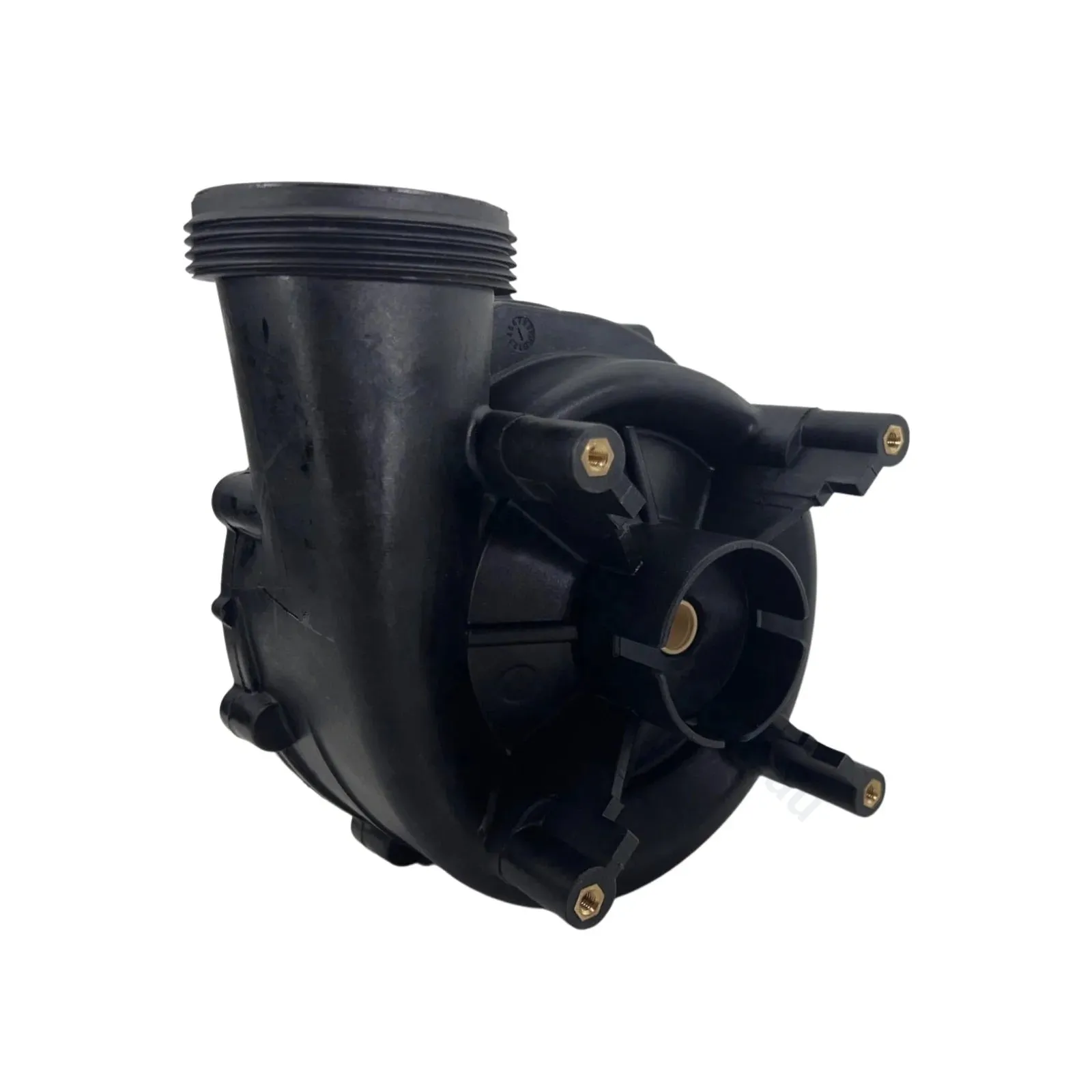

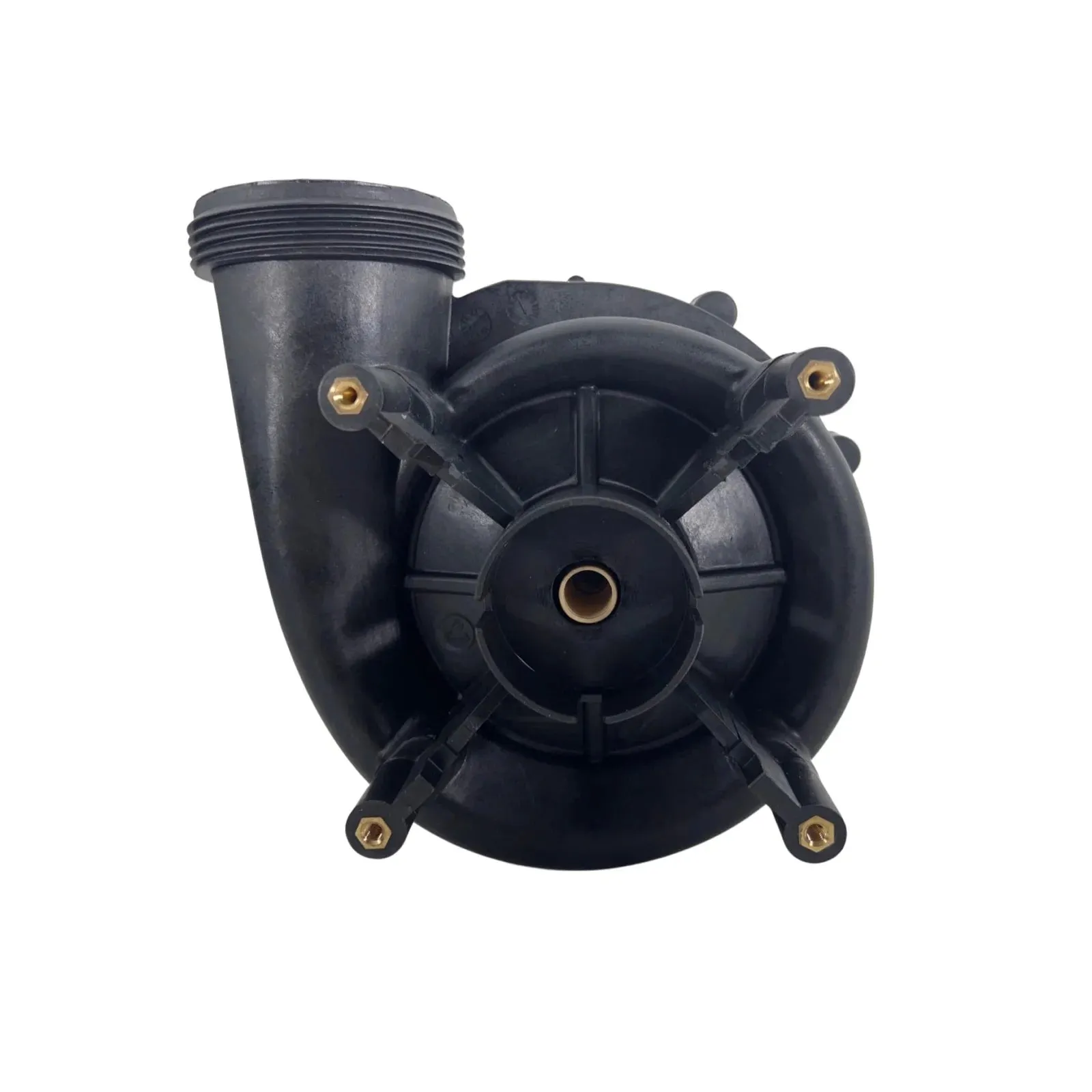

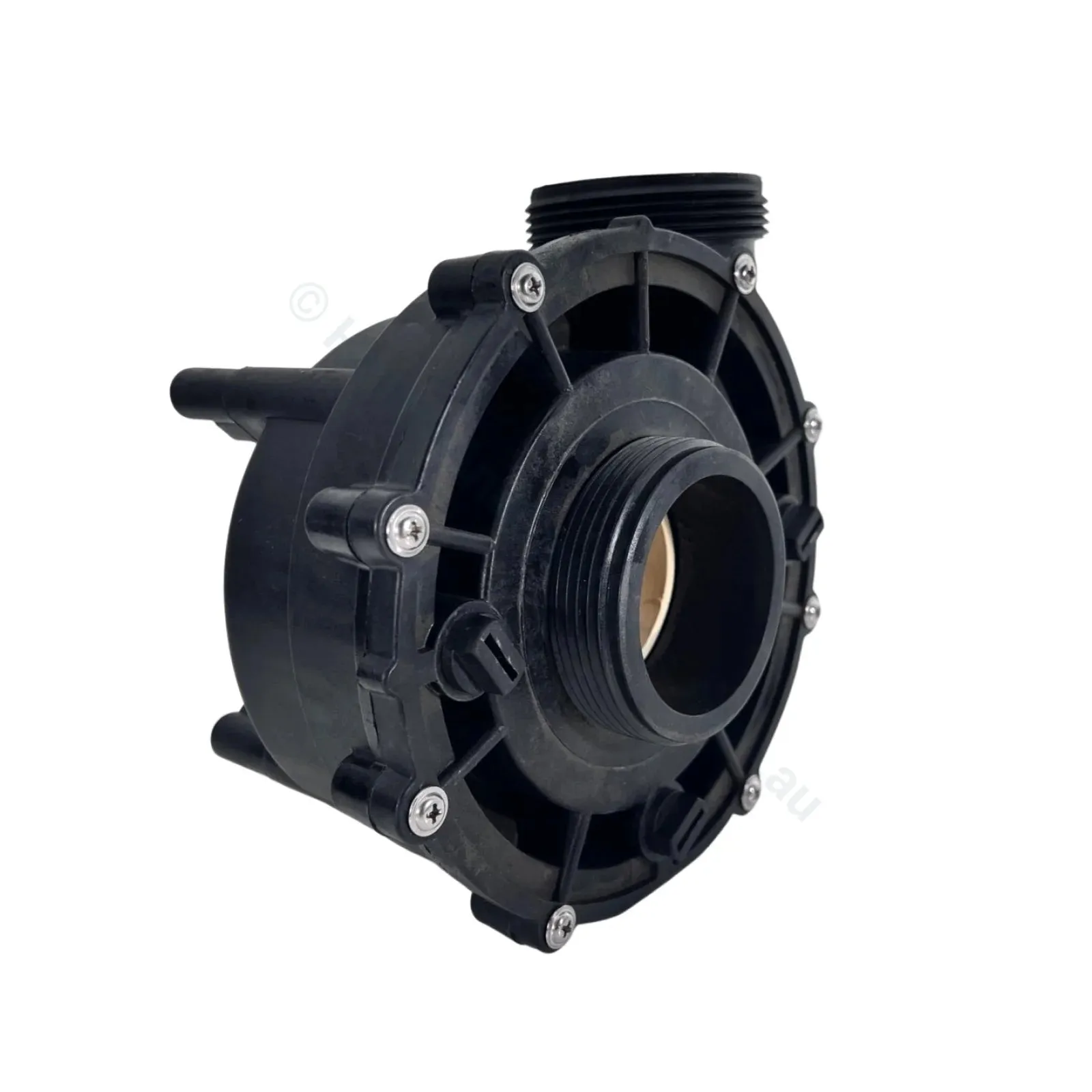

Complete wet ends including body, impeller, mechanical seal, o-ring, and screws for Davey QB, Spanet Jetmaster and LX Whirlpool LP & WP Pumps. Also suits many Watkins / Jacuzzi / Hotspring pumps built by LX. Comes with fine thread. If you have an older course-threaded wet end, choose the Adaptors in the Add-Ons.
See Important Notes below
Now comes with PPO chemical resistant impeller. Note that some versions with air bleed nipple can no longer be used. (Plug or removed air bleed if necessary).
- 2.0hp - Davey QB2001, QB2002. LX LP200, WP 200-II. Spanet Jetmaster XS-20-2S*
- 2.5hp - Davey QB2501, QB2502. LX LP250, WP 250-II. Spanet Jetmaster XS-30*
- 3.0hp - Davey QB3001, QB3002. LX LP300, WP 300-II. Spanet Jetmaster XS-30-2S, XS-30S*
- Fits various Jacuzzi, Sundance, Watkins pumps and others. See notes below.*
- - measures ~78-79mm OD on pump
Important Notes:

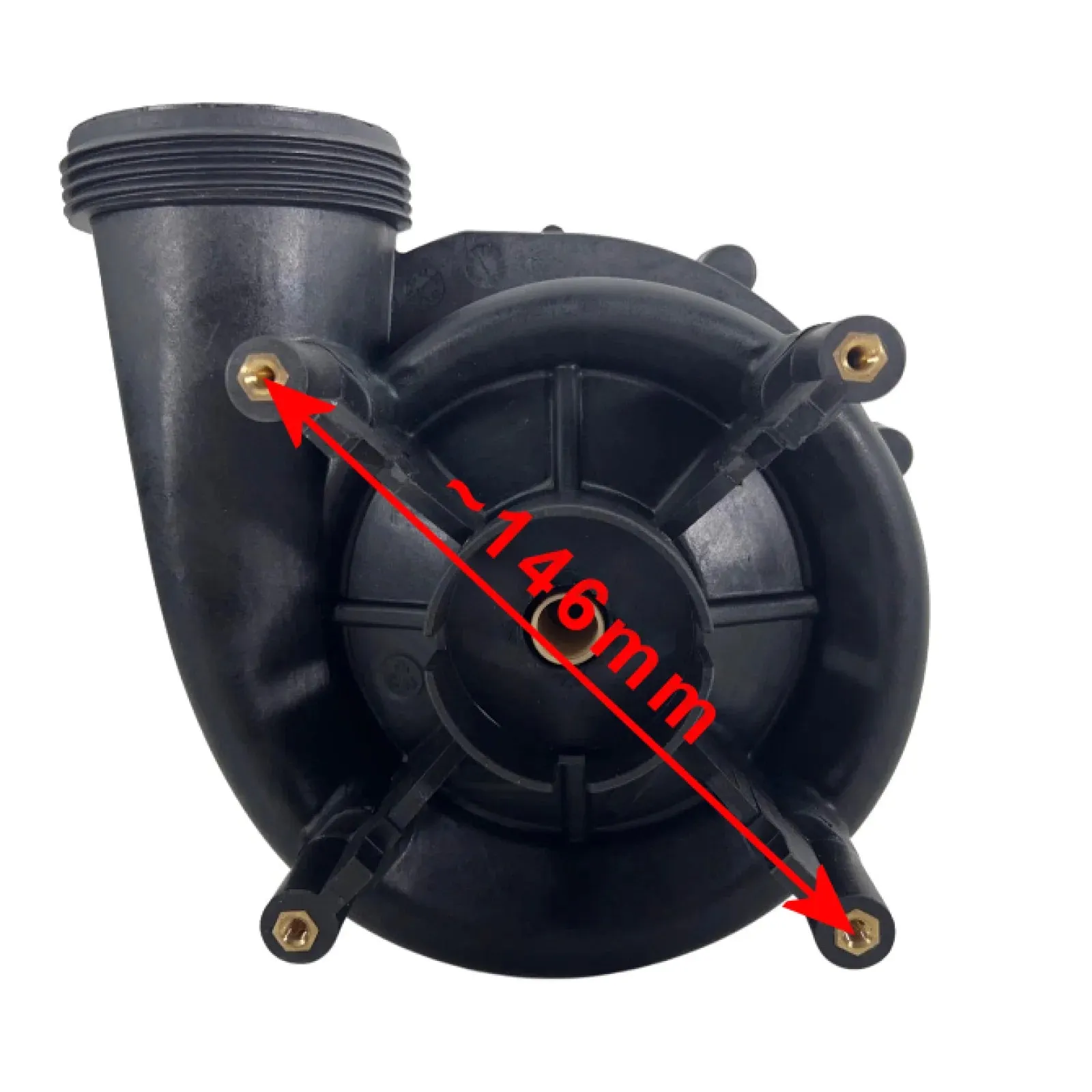

- Motor-mounting bolts measure approx 146mm diagonally.
- If you have an early Davey QB or LX LP/WP with course thread you will need the thread adaptors.
- May not suit some pre-2007 pumps. They have had several variations that were never tracked or logged. There is no way to tell until trying these out.
- May not suit, or may need to be modified, on some Jacuzzi / Sundance / Watkins LP or WP series pumps. May need Course-to-Fine thread adaptors. There is no way to tell until trying these out.
- If adapting from course to fine threaded nuts, the inside lip of the wet end may need minor reaming with a sharp tool or reamer.
- If unsure or not willing to take a risk on the above pumps, we recommend replacing the pump itself.
Alternate Spellings:
- 2.0hp - Davey QB 2001, QB 2002. LX LP 200, WP200-II. Spanet Jetmaster XS-20-2S* wet end.
- 2.5hp - Davey QB 2501, QB 2502. LX LP 250, WP250-II. Spanet Jetmaster XS-30* wet end.
- 3.0hp - Davey QB 3001, QB 3002. LX LP 300, WP300-II. Spanet Jetmaster XS-30-2S, XS-30S* wet end.
