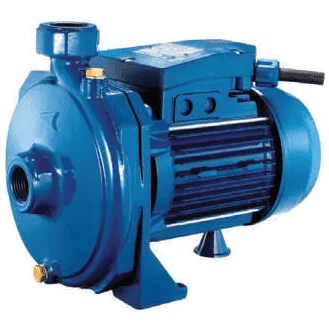

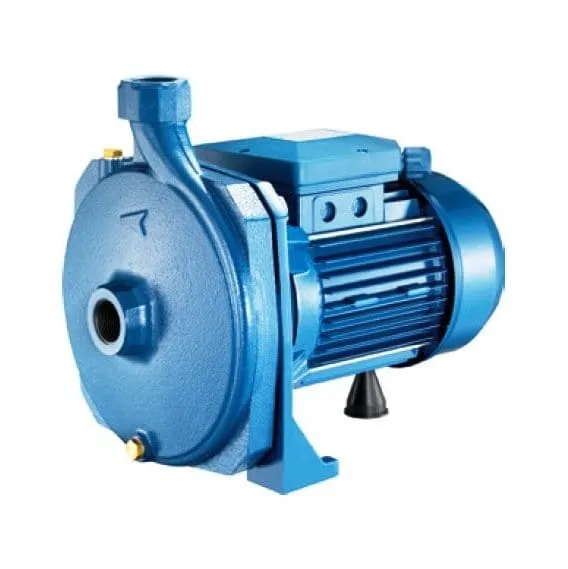

Centrifugal pumps with a single rotor, very silent, suitable for domestic civil and industrial applications.
The compact construction of the pump body ensures constant pressure in case of flow variation.
| CM100/01 | PENTAX CENTRIFUGAL WATER PUMP 1HP |
| CM160/01 | PENTAX CENTRIFUGAL WATER PUMP 1.5HP |
| CM164/01 | PENTAX CENTRIFUGAL WATER PUMP 1.5HP NT |
| CM210/01 | PENTAX CENTRIFUGAL WATER PUMP 2HP |
| CM214/01 | PENTAX CENTRIFUGAL WATER PUMP 2HP NT |
| CM310/01 | PENTAX CENTRIFUGAL WATER PUMP 3HP |
| CM314/01 | PENTAX CENTRIFUGAL WATER PUMP 3HP 1X1.25INCH |
CENTRIFUGAL PUMP PENTAX CM 164/01
- Maximum flow rate 7 m³/h
- Maximum pumping height 39 mCA
- Suction diameter 32 DN
- Discharge diameter 25 DN
- Power - HP 1.5
- Three-phase power supply
- Maximum working pressure 8 bar
- Motor support material Brass
- Pump body material Cast iron
- Rotor material Brass
- Mechanical sealing Ceramic-graphite
- AISI 303 stainless steel motor shaft
- Weight 22.5 kg
- Power 1.1 kW
- Frequency 50 Hz
- Working temperature 0 - 50 °C
- Insulation class F
- Protection class IP 44
CENTRIFUGAL PUMP PENTAX CM 214/01
- Maximum flow rate 7 m³/h
- Maximum pumping height 44 mCA
- Suction diameter 32 DN
- Discharge diameter 25 DN
- Power - HP 2
- Single-phase power supply
- Maximum working pressure 8 bar
- Motor support material Brass
- Pump body material Cast iron
- Rotor material Brass
- Mechanical sealing Ceramic-graphite
- AISI 303 stainless steel motor shaft
- Weight 23 kg
- Power 1.5 kW
- Frequency 50 Hz
- Working temperature 0 - 50 °C
- Insulation class F
- Protection class IP 44
CENTRIFUGAL PUMP PENTAX CM 310/01
- Maximum flow rate 8 m³/h
- Maximum pumping head 55 mCA
- Suction diameter 25 DN
- Discharge diameter 25 DN
- Power - HP 3
- Single-phase power supply
- Maximum working pressure 8 bar
- Motor support material Brass
- Pump body material Cast iron
- Rotor material Brass
- Mechanical sealing Ceramic-graphite
- AISI 303 stainless steel motor shaft
- Weight 27.5 kg
- Power 2.2 kW
- Frequency 50 Hz
- Working temperature 0 - 50 °C
- Insulation class F
- Protection class IP 44
